Buy Hengst H10W01 Oil Filter – FORD – Wholesale

H10W01

Product Overview

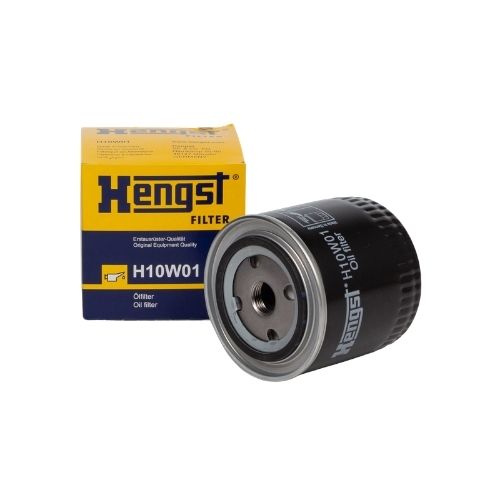

The Hengst H10W01 Oil Filter is a high-performance spin-on oil filter engineered to capture harmful contaminants, metal particles, and sludge from engine oil. Built to strict OEM standards, this spin-on filter features a robust housing and reliable internal valving to maintain optimal oil pressure, ensure consistent lubrication, and protect vital internal engine components across automotive, commercial, agricultural, and industrial applications including Ford, Alfa Romeo, Chrysler, Fiat, Peugeot, and Renault.

Technical Specifications

• Part Number: H10W01
• Brand: Hengst Filter
• Part Type: Oil Filter
• Filter Type: Spin-on Filter
• Outer Diameter [mm]: 93
• Inner Diameter [mm]: 62
• Outer Diameter 1 [mm]: 72
• Thread Size: 3/4-16 UNF-2B
• Height [mm]: 95

OE Part Numbers & References

• ALFA ROMEO: 116120603000, 116440603000
• ALLIS-CHALMERS: HB-03028811
• BOBCAT: M6675517
• CASE IH: A-46158, D-62845, K-200037
• CATERPILLAR: 9 Y-4487, 9 Y-4506
• CHRYSLER: 2650396, 5041315, 5057957, 5221272, 5221313, 6160448, 75061409, 75061411, 75221405, X-3549957
• CITROËN: MLS 000-144 A
• DAVID BROWN: 200037
• DEUTZ: 0141-15-11.10, 335 7461
• DEUTZ-FAHR: 0141-15-11.10, 0335 7461
• EVOBUS: 8.312.000.298
• FAUN: 11-542-957
• FIAT: 4126435, 4158728, 4160703, 4199523, 4286050, 4286051, 4286052, 4316238, 4323062, 4335580, 4335880, 4343591, 4343597, 4363485, 7300943, 82342881, 82360558
• FIAT-HITACHI: 83986742, 87800068
• FORD: 0 HM 6716 BA, 1 473 773, 1 482 151, 1 498 018, 1 508 831, 1 515 160, 1 555 451, 1 556 297, 1 564 767, 1 565 486, 1 641 158, 11 405 640, 11 425 472, 11 436 936, 11 464 497, 11 464 498, 11 525 472, 11 525 802, 5 001 248, 5 002 230, 5 003 559, 5 003 560, 5 003 561, 5 003 932, 5 004 930, 5 008 677, 5 016 957, 5 018 351, 5 018 355, 6 061 629, 692M 6714 AA, 74HM 6714 CB, 89HX 6714 AA, 94MM 671 4AA, A 740 X 6714 FA, A 770 X 6714 MA, A 770 X 6714 RA, A 770 X 6714 UA, V86HF 671 4AA
• FREIGHTLINER: ABP/N10G-LF3604
• GENERAL MOTORS: 7961367, 9975120, 9975161
• HYSTER: 180283
• ISUZU: 1-32400-80, 8-85111-61, 8-85131-06
• JOHN DEERE: AM 37 025, AM31205
• KOMATSU: 37Z-02O-F301
• LANCER BOSS: 705 2417, 705 2420
• LANCIA: 823 42881
• LINDE: 5003 560
• MASSEY FERGUSON: 1 041 249, 1 041 429, 9 046 817
• NEW HOLLAND: 83986742
• O&K: 918 266
• PEUGEOT: 1109.29, 1109.31, 1109.45, 1109.46, 1109.55, 1109.78, 1109.A0
• RENAULT: 77 00 640 165, 77 01 020 783, 77 01 348 110, 77 01 542 286
• RENAULT TRUCKS: 77 01 020 783, 77 01 348 110
• SAAB: 800 334, 834 940, 834 940-9, 880 334
• SCANIA: 800 334, 834 940, 834 940-9, 880 334
• SULLAIR: 47 529
• TALBOT: 79 102 468 15
• UAZ: 2101-1012005-20, 2101-1012005-20A
• VAG: 000 389 79 91, 000 389 7992, 000 393 6569, 000 393 6870, 000 594 0898

OEM / Cross Reference Numbers

• BOSCH: 0 451 103 029
• CHAMPION: COF100102S

Applications & Compatibility

Compatible with a broad range of passenger cars, commercial vehicles, agricultural machinery, and industrial equipment specifying the OE part references listed above. Please verify physical dimensions (Outer Diameter: 93mm, Thread Size: 3/4-16 UNF-2B, Height: 95mm) and gasket seating prior to installation.

Key Features

• Heavy-duty spin-on canister design allows for quick, clean, and straightforward filter changes
• High-efficiency filter media traps microscopic abrasive particles to safeguard engine bearings and cylinder walls
• Integrated anti-drainback valve prevents oil from draining out of the filter when the engine is turned off, ensuring immediate oil pressure upon startup
• Manufactured to strict Hengst OEM quality control standards

Warranty & Product Authenticity

• 100% genuine Hengst product
• Manufactured to OEM standards
• Professional installation, ensuring the mounting base is clean and the gasket is lightly oiled before spinning on recommended
Extends engine lifespan, protects vital moving parts against premature wear, and ensures stable oil circulation under all operating conditions
